Add test case form

This popup form can be accessed via the add menu in the top header area of the project or sub-project view pages, as shown in Figure 1. Alternatively you can access the add popup form at the bottom of the Test cases tab at these same view pages, as shown in Figure 2. You may also add a test case to an already existing test case or folder listed in the Test cases tab via the actions column menu, to create a hierarchy of test cases, as indicated in Figure 3.

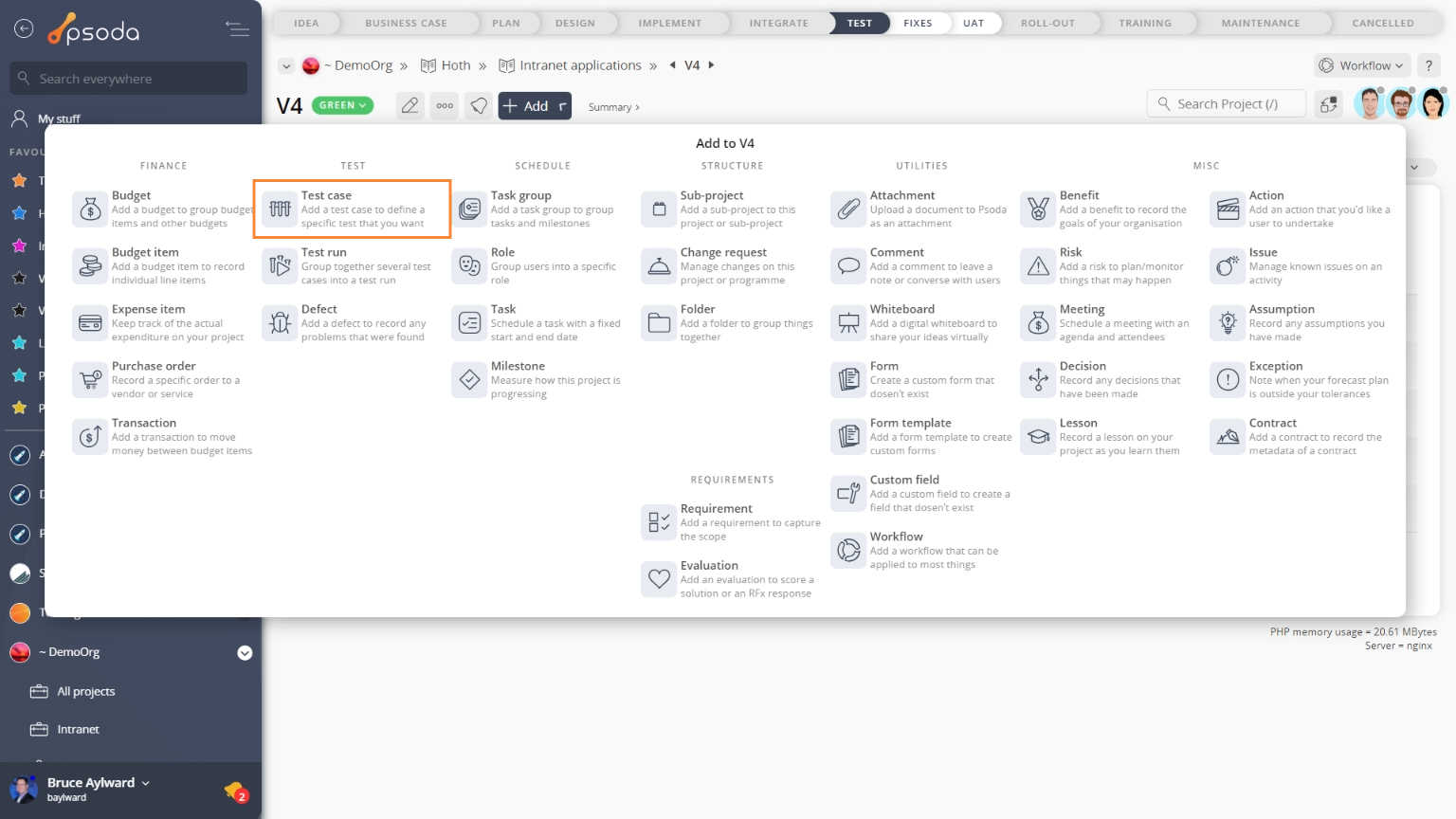

Figure 1 – Access via add menu

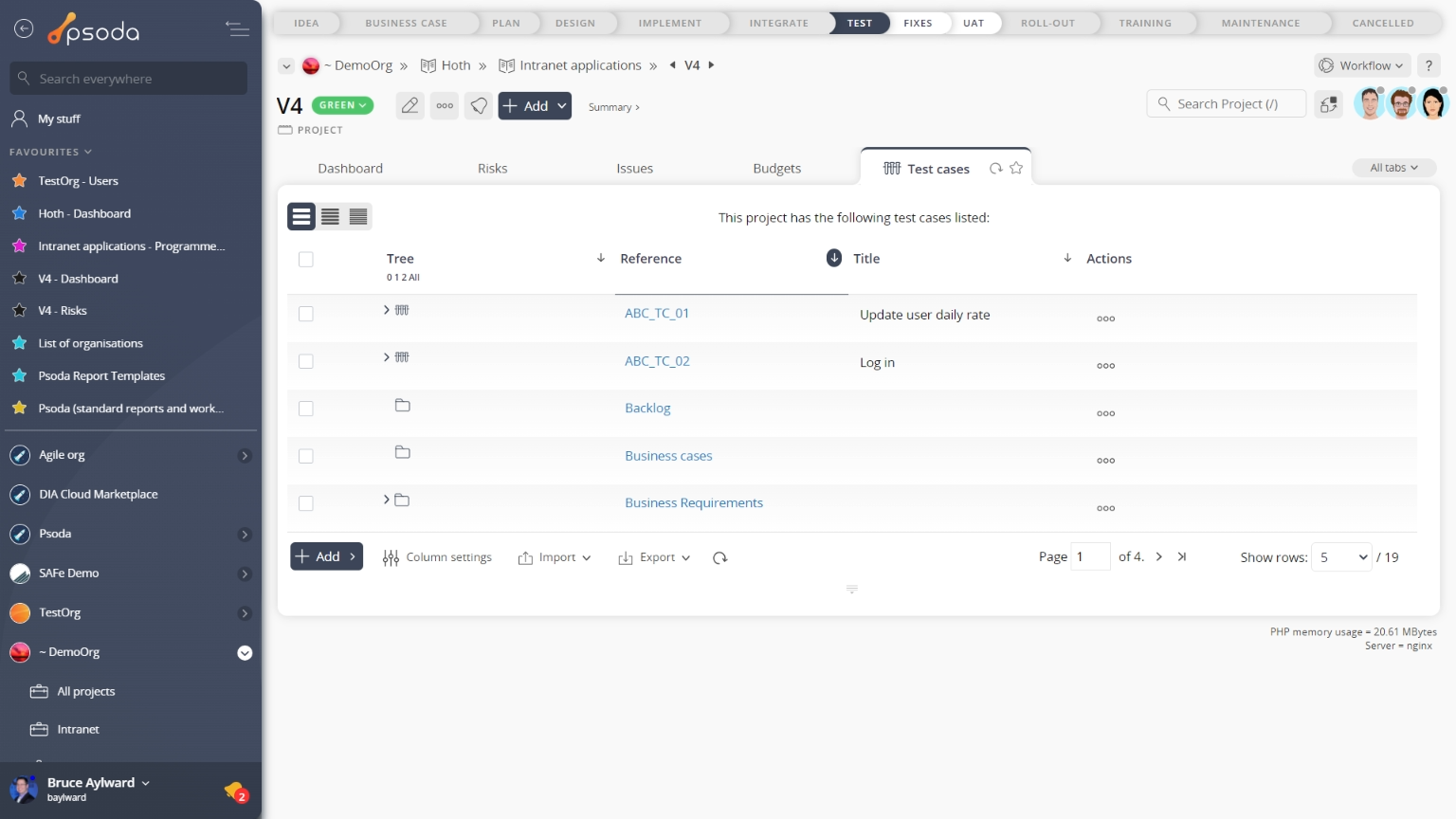

 Figure 2 – Access via test cases tab

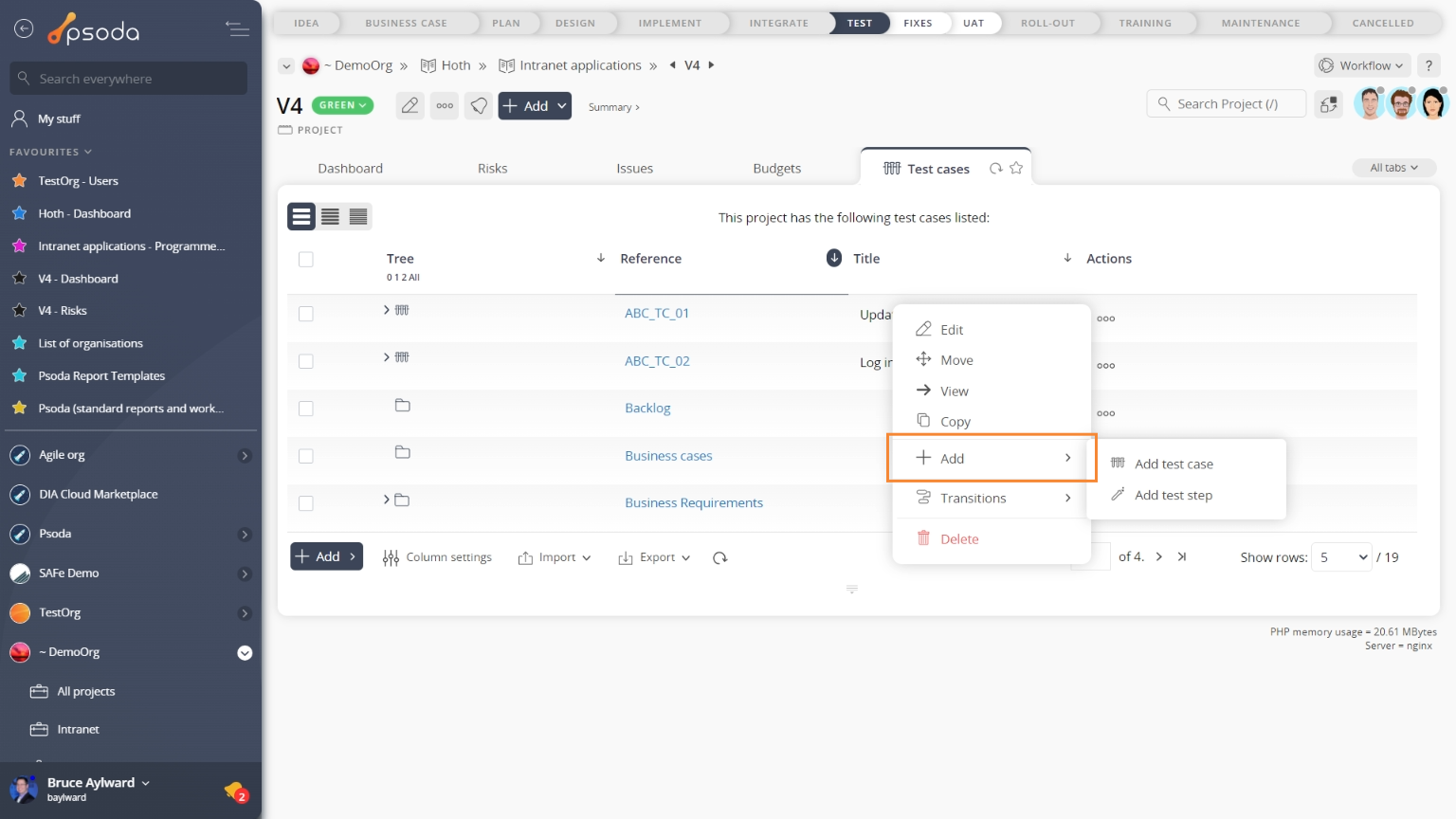

Figure 3 – Access via actions column menu

This popup is shown in Figure 4 and is used to add a new test case for the selected asset.

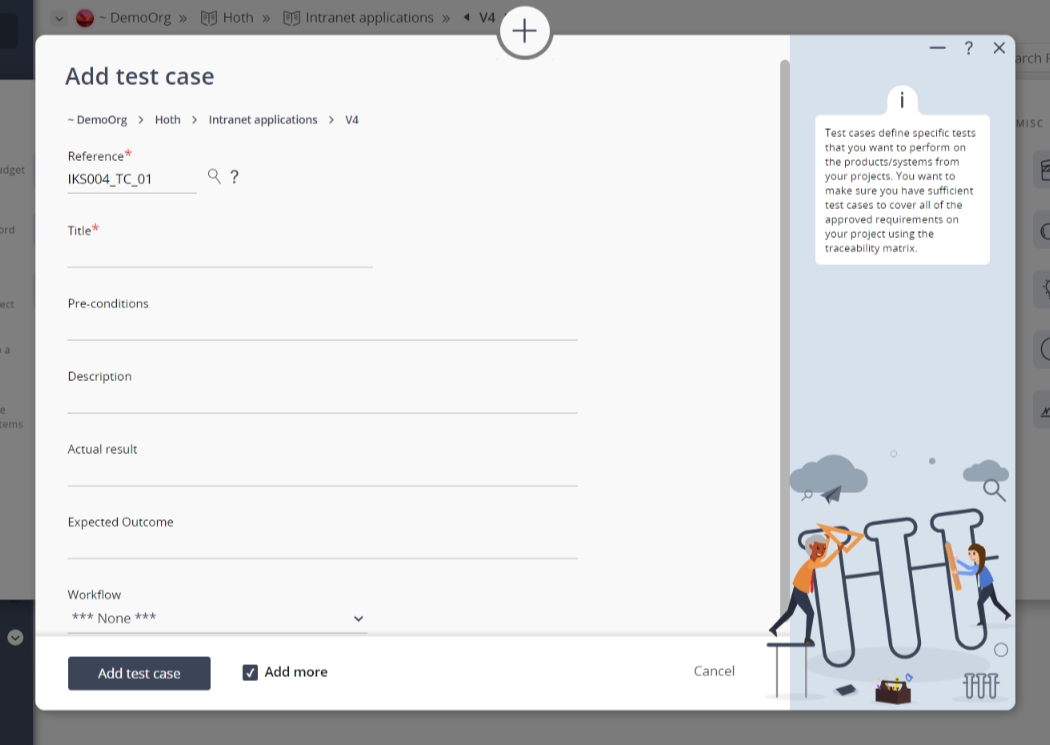

Figure 4 – Add test case form

This form has the following fields:

Parent asset:	These read-only fields show the organisation, programme, project and (if applicable) sub-project levels and the lowest field indicates which asset this test case is being made for.
Reference*:	This mandatory field is used to specify a reference for this new test case, e.g. TC_001. The reference must be unique within your project or sub-project. If you click on the “Find next reference” icon button next to the reference field then the system will find the next available reference number. For example if you enter the reference TC_000 then the system will try TC_001, TC_002 etc until it finds an available value.
Title*:	Enter the title for this test case here. This would typically be the name of the product or solution that you want to evaluate against the requirements of the asset. The title must be unique across the whole project or sub-project.
Pre-conditions:	Enter the pre-conditions for this new test case here.
Description:	Enter a description of this new test case here.
Workflow:	Use this drop-down list to select the applicable workflow for this requirement. You can define your own workflows if you do not want to use the system default workflow, or you may select the ‘None’ option if you do not want to assign a workflow to this new test case.
Add more:	Select this check box if you’d like to keep this form open and add more test cases to this asset once the current test case has been created.

Once you are happy with your data, click the “Add test case” button at the bottom of the form. This will add the new test case with the information that has been supplied.   The new test case can be viewed in the Test cases tab asset listing at the parent asset’s view page, as shown in Figure 5. The addition of this new tab will also be incorporated into the Test case overview dashlet at this same page, as shown in Figure 6.

Figure 5 – View from Test cases tab

Click the “Cancel” button if you no longer want to add a new test case.
